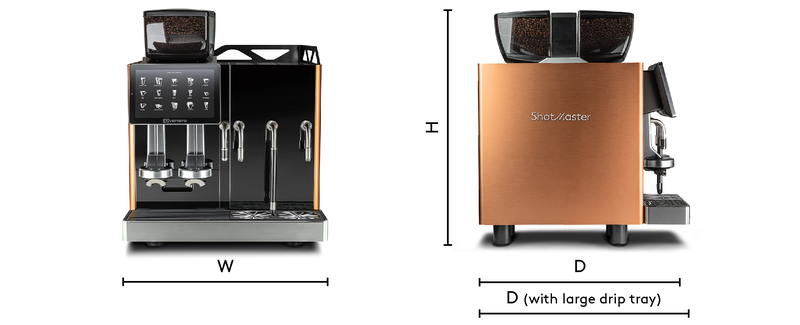

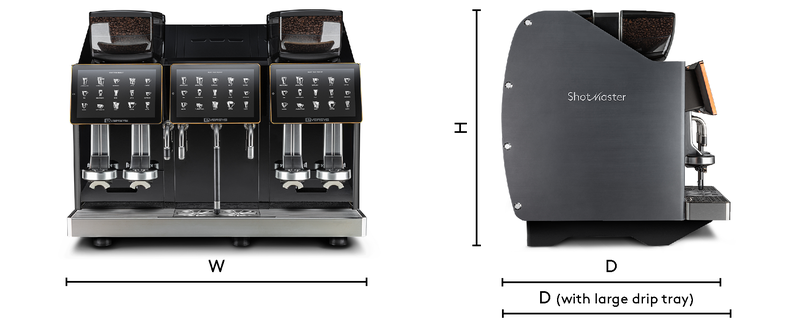

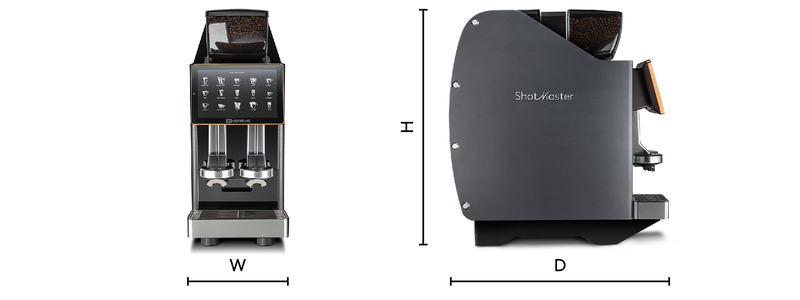

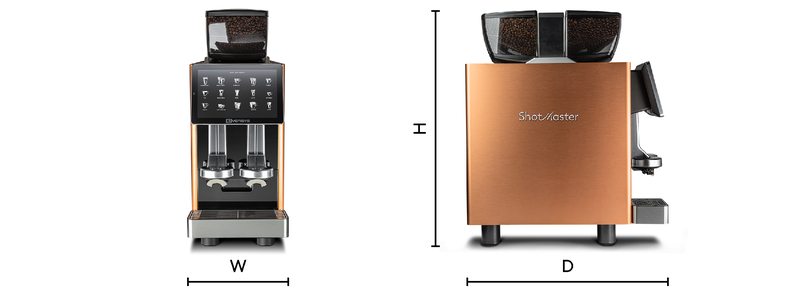

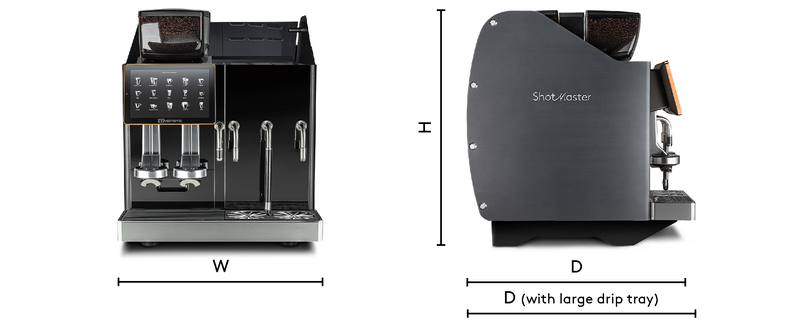

Shotmaster technical specifications Download PDF Eversys Jan 1, 1970 1:00:00 AM Shotmaster technical specifications 1 module - Shotmaster c Description Shotmaster c Weight - Classic line 60 kg (132 lbs) Weight - Super Traditional line 66 kg (146 lbs) Dimensions - Classic line (W x H x D) 280 x 743 x 600 mm (11 x 29.2 x 23.6 in) Dimensions - Super Traditional line (W x H x D) 289 x 743 x 667 mm (11.4 x 29.2 x 26.2 in) Brew chamber 2 x 24 g (0.05 lb) Grinder 2 x Ø64 mm (2.5 in) burrs Display 1 x Touch screen 256 mm (10.1") - 1280 x 800 px Bean hopper 2 x 1.5 kg (3.3 lbs) Coffee outlet height* Max. 200 mm (7.9 in) Hot water outlet height* 160 mm (6.3 in) or 215 mm (8.5 in) (option) Interfaces 2 x USB, 1 x Ethernet, 1 x CCI/CSI Cup heater Not available Coffee boiler 2 x 1.5 L (50.7 oz) Steam boiler Not available Grounds drawer 1 x 700 g (1.54 lbs) Drip tray Standard *measured from the drip tray 2 modules - Shotmaster s | Shotmaster ms Description Shotmaster s Shotmaster ms Weight - Classic line 91 kg (201 lbs) 95 kg (210 lbs) Weight - Super Traditional line 101 kg (223 lbs) 105 kg (232 lbs) Dimensions - Classic line (W x H x D) 560 x 743 x 600 mm (22 x 29.2 x 23.6 in) Dimensions with large drip tray - Classic line (W x H x D) 560 x 743 x 650 mm (22 x 29.2 x 25.6 in) Dimensions - Super Traditional line (W x H x D) 569 x 743 x 667 mm (22.4 x 29.2 x 26.2 in) Dimensions with large drip tray - Super Traditional line (W x H x D) 569 x 743 x 717 mm (22.4 x 29.2 x 28.2 in) Brew chamber 2 x 24 g (0.05 lb) Grinder 2 x Ø64 mm (2.5 in) burrs Display 1 x Touch screen 256 mm (10.1") - 1280 x 800 px Bean hopper 2 x 1.5 kg (3.3 lbs) Coffee outlet height* Max. 200 mm (7.9 in) Hot water outlet height* 160 mm (6.3 in) or 215 mm (8.5 in) (option) Interfaces 2 x USB, 1 x Ethernet, 1 x CCI/CSI Cup heater Up to 64 espresso cups Coffee boiler 2 x 1.5 L (50.7 oz) Steam boiler 5.4 L (183 oz) Grounds drawer 1 x 700 g (1.54 lbs) Drip tray Standard or Large (option) *measured from the drip tray 3 modules - Shotmaster s-pro | Shotmaster ms-pro Description Shotmaster s-pro Shotmaster ms-pro Weight - Super Traditional line 163 kg (359 lbs) 167 kg (368 lbs) Dimensions - Super Traditional line (W x H x D) 849 x 743 x 667 mm (33.4 x 29.2 x 26.2 in) Dimensions with large drip tray - Super Traditional line (W x H x D) 849 x 743 x 717 mm (33.4 x 29.2 x 28.2 in) Brew chamber 4 x 24 g (0.05 lb) Grinder 4 x Ø64 mm (2.5 in) burrs Display 3 x Touch screens 256 mm (10.1") - 1280 x 800 px Bean hopper 4 x 1.5 kg (3.3 lbs) Coffee outlet height* Max. 200 mm (7.9 in) Hot water outlet height* 160 mm (6.3 in) or 215 mm (8.5 in) (option) Interfaces 4 x USB, 2 x Ethernet, 2 x CCI/CSI Cup heater Up to 64 espresso cups Coffee boiler 4 x 1.5 L (50.7 oz) Steam boiler 5.4 L (183 oz) Grounds drawer 2 x 700 g (1.54 lbs) Drip tray Large or Standard (option) *measured from the drip tray visibility-public, visibility-restricted-us, category-enigma, filter-machines-enigma, visibility-restricted, topic-technical-data
