Empty and clean E'choco powder containers (machine option)

Switch off at the main power switch.

Open the door.

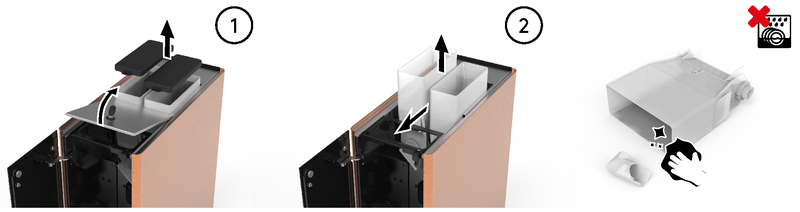

Remove the top panel (1).

Remove the powder container lids (2).

Pull the containers and lift to remove them (3).

Remove the powder chute (4).

Remove the ring (5).

Remove the powder outlet (6).

Remove the ring (7).

Remove the dispensing screw (8).

Clean all parts with soft soap, rinse with water and dry with a soft cloth.

	Note
	Make sure that the powder containers and powder chutes are perfectly dry before refilling with powder.

Install the dispensing screw (8).

	Important
	Make sure the O-ring (9) is not damaged and is properly seated in its groove. Make sure the dispensing screw (8) is in full contact with the container (3). Turn it until the screw’s guides fit into the container’s slots.

Tighten the ring (7) by hand.

	Note
	Use the ring with the smallest inner diameter.

Put the powder outlet (6) back to its original position.

Tighten the ring (5) by hand.

	Note
	Use the ring with the largest inner diameter.

Install the powder chute (4).

Repeat the operation on the second powder container.

Put the containers (3) back in their original position.

Put the containers lids (2) back in their original position.

Put the top panel (1) back in its original position.
